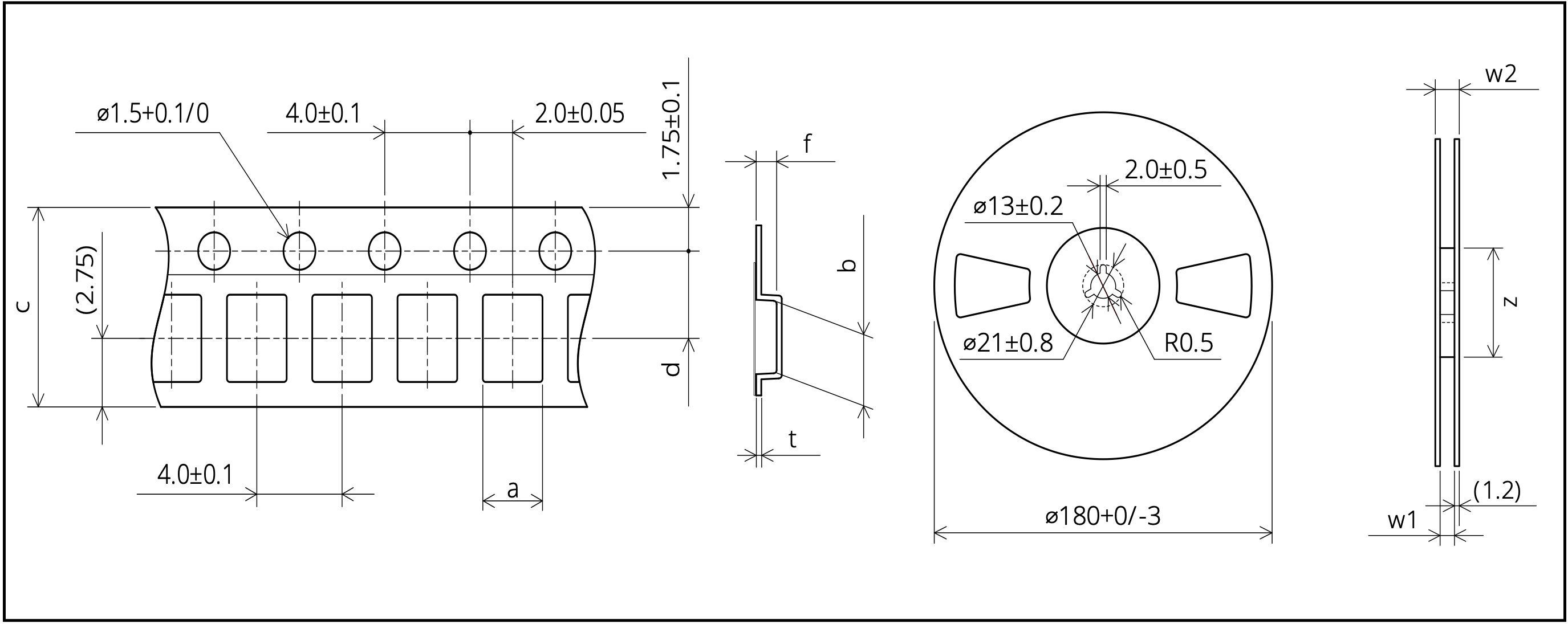

Packing Specification
MHz AT-cut Crystal Unit
| a | b | c | d | f | t | z | w1 | w2 | Quantity /Reel |
total weight(g) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| FCX-08 | 1.20 ±0.05 |
1.40 ±0.05 |
8.0 ±0.2 |
3.5 ±0.05 |
0.50 ±0.05 |
0.20 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
5000 | 89 |
| FCX-07L | 1.45 ±0.1 |
1.85 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
0.50 ±0.05 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 80 |
| FCX-06 | 1.85 ±0.1 |
2.25 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
0.65 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
13 ±1.0 |
3000 | 64 |
| FCX-05 | 2.25 +0.05/-0.1 |
2.75 +0.05/-0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
0.7 ±0.05 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
13 ±1.0 |
3000 | 77 |
| FCX-04C | 2.8 ±0.1 |
3.5 ±0.1 |
8.0 ±0.1 |
3.5 ±0.05 |
1.0 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 101 |
swipe
kHz Tuning-Fork Crystal Unit
| a | b | c | d | f | t | z | w1 | w2 | Quantity /Reel |
total weight(g) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| TFX-05X | 1.20 ±0.05 |
1.40 ±0.05 |
8.0 ±0.2 |
3.5 ±0.05 |
0.50 ±0.05 |
0.20 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
5000 | 84 |
| TFX-04 TFX-04C |
1.25 ±0.1 |
1.85 ±0.1 |
8.0 ±0.2 |
3.5 ±0.1 |
0.7 ±0.05 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
5000 | 104 |
| TFX-03 TFX-03C |
1.45 ±0.1 |
2.25 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
0.7 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 86 |
| TFX-02S | 1.9 ±0.1 |
3.6 ±0.1 |
12.0 ±0.3 |
5.5 ±0.05 |
1.0 ±0.1 |
0.3 ±0.05 |
⌀60 ±2.0 |
12.4 +2.0/0 |
18.4 | 3000 | 107 |
swipe
MHz Crystal Oscillator
| a | b | c | d | f | t | z | w1 | w2 | Quantity /Reel |
total weight(g) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| FCXO-07 | 1.45 ±0.1 |
1.85 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
0.80 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 85 |
| FCXO-06 | 1.85 ±0.1 |
2.25 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
0.95 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 95 |
| FCXO-05 | 2.3 ±0.1 |
2.8 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
1.0 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 114 |
| FCXO-04 | 2.8 ±0.1 |
3.5 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
1.0 ±0.1 |
0.25 ±0.05 |
⌀60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
3000 | 135 |
swipe
