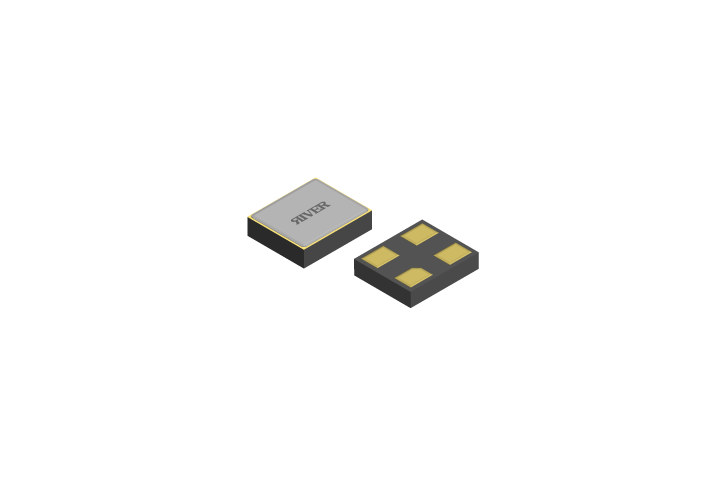

FCX-08

1.2 × 1.0 (mm: L × W)

RoHS
Pb Free
FCX-08

1210 size Crystal Unit

  • The world’s smallest, AT-cut 32 ~ 80 MHz crystal unit
  • Robust ceramic package with metal lid sealed by electron beam
  • Specifications in conformity with AEC-Q200 available on request
Product Catalog LPB C-Format

USE

  • Wireless communications / IoT Wireless
    communications
    / IoT
  • Audiovisual equipment Audiovisual
    equipment
  • Medical / Healthcare Medical
    / Healthcare

SPECIFICATION

  • Length

    1.2mm

  • Width

    1.0mm

  • Height

    0.30mm,Max

  • Nominal
    frequency

    32〜80MHz

  • Operating
    temperature

    -40〜125℃
Item Specifications
Nominal frequency (MHz) 32.000 〜 80.000
Frequency tolerance (ppm)
(@ 25 ℃)		 ±7, ±10, ±15, ±20, ±30, ±50, O.A, other
Storage temperature (℃)
(Not applicable to packaging materials)		 -55 〜 +125, other
Operating temperature (℃) -20 〜 +70 -30 〜 +85 -40 〜 +85 -40 〜 +105 -40 〜 +125 Other
combinations
Frequency temperature characteristics (ppm)
(Refer to 25 ℃)		 ±10
±15
±20
±30
±50		 ±10
±15
±20
±30
±50		 ±15
±20
±30
±50		 ±30
±50		 ±50
Equivalent series resistance [E.S.R] As per below table
Drive level (µW) 100 Max.
Load capacitance (pF) 5.0 〜
(Please specify)
Tape and reel (pcs/reel)
(Reel diameter: Φ180 mm)		 5000 Max.
swipe
Nominal frequency (MHz) Equivalent series resistance [E.S.R] (Ω)
32.000 〜 33.000 100 Max.
33.000 〜 37.000 80 Max.
37.000 〜 80.000 60 Max.
other other
