TFX-05X

1.2 × 1.0 (mm: L × W)

RoHS
Pb Free
TFX-05X

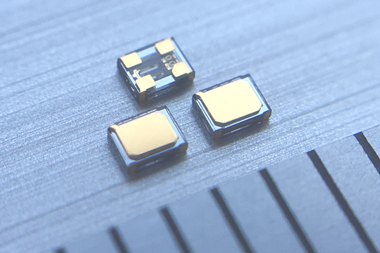

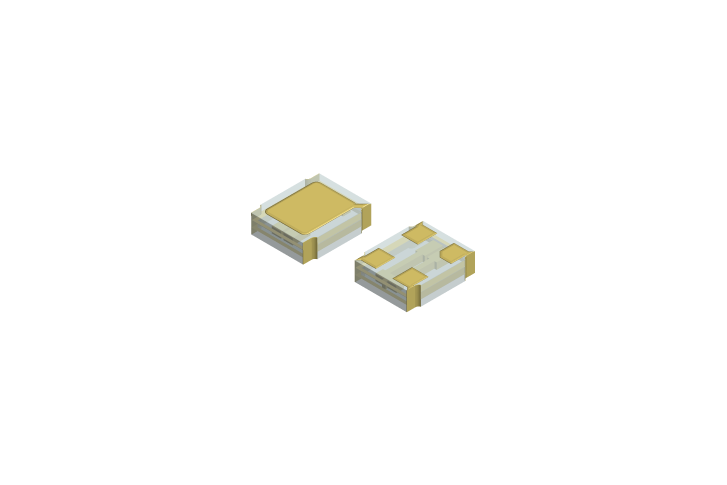

1210size Tuning fork crystal unit

  • The world’s smallest 1210 size 32.768 kHz tuning fork crystal unit
  • Ultra-thin (0.35 mm) / ultra-light (0.8 mg) “Crystal Package” made of quartz crystal:
    → 43% lighter weight than a ceramic package of the same size
    → Better weather-ability / excellent shock resistance
    → "Metal Diffusion Sealing (MDS)": Robust sealing method using metal diffusion (patent pending)
  • Wide operating temperature range of -40 ~ +105℃ available
  • Specifications in conformity with AEC-Q200 available on request
Product catalog

USE

  • Smartphone Smartphone
  • Automotive Automotive
  • Wireless communications / IoT Wireless
    communications
    / IoT
  • Audiovisual equipment Audiovisual
    equipment
  • Medical / Healthcare Medical
    / Healthcare

SPECIFICATION

  • Length

    1.2mm

  • Width

    1.0mm

  • Height

    0.35mm,Max

  • Nominal
    frequency24

    32.768kHz

  • Operating
    temperature

    -40〜105℃
Item Specifications
Nominal frequency (kHz) 32.768
Frequency tolerance (ppm)
(@ 25 ℃)		 ±20, ±30, ±50, other
Storage temperature (℃) −55 〜 +125, other
(Not applicable to packaging materials)
Operating temperature (℃) −20 〜 +70, −40 〜 +85, −40 〜 +105, other
Operating temperature (℃) 25 ± 5
Temperature coefficient (K-2) −(0.03 ± 0.01) × 10-6
Equivalent series resistance (kΩ) 90 Max. other
Motional capacitance (fF) /
Shunt capcitance (pF)		 7.0 Typ. / 1.5 Typ.
Drive level (µW) 0.5 Max.
Load capacitance (pF) 5.0, 7.0, 9.0, 12.5
(Other values available)
Tape and reel (pcs/reel)
(Reel diameter: Φ180 mm)		 5000 Max.
